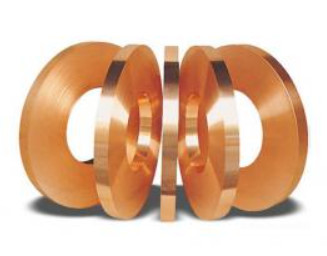

Oxygen Free C10200 Copper Strip / Copper Width Coils 7-610mm For Switch Parts

Description of the Oxygen Free C10200 Copper Strip

The Oxygen Free C10200 copper strip refers to a specific type of copper strip made from C10200 grade copper alloy. Here's a description of its key features and properties:

1. Material: The strip is primarily composed of C10200 copper, which is a high-purity copper alloy. C10200 copper is classified as oxygen-free copper, meaning it has extremely low oxygen content, typically less than 0.001%.

2. High Conductivity: Oxygen Free C10200 copper is known for its excellent electrical conductivity. It provides high efficiency in conducting electrical currents, making it suitable for applications that require minimal electrical resistance.

3. Thermal Conductivity: C10200 copper strip also exhibits excellent thermal conductivity. It efficiently transfers heat, making it useful in applications that require effective heat dissipation or thermal management.

4. Corrosion Resistance: Oxygen Free C10200 copper possesses good corrosion resistance, particularly in non-oxidizing environments. However, it is susceptible to corrosion in certain conditions, including exposure to oxidizing agents or acidic environments. Proper protective coatings or treatments may be necessary to enhance its corrosion resistance if required by the application.

5. Ductility and Formability: C10200 copper strip has good ductility, allowing it to be easily formed, bent, or shaped as needed. It is often used in applications that require complex or customized shapes.

6. Applications: Oxygen Free C10200 copper strip finds applications across various industries, including electrical and electronic equipment, telecommunications, power generation and distribution, automotive, and more. It is commonly used in busbars, conductors, terminals, connectors, heat sinks, and other components that require high electrical and thermal conductivity.

7. Sizes and Dimensions: Copper strips can be manufactured in various sizes, thicknesses, and widths to meet specific application requirements. The specific dimensions and tolerances of Oxygen Free C10200 copper strips can vary depending on the manufacturer and industry standards.

It's important to note that Oxygen Free C10200 copper strip is typically used in applications where its high conductivity and purity are advantageous. However, it may not be necessary or cost-effective for all applications. Considerations such as cost, mechanical strength, and specific environmental conditions should be taken into account when selecting the appropriate copper strip for a particular application.

Characteristics of pure copper

Pure copper is a rose red metal, the surface of the formation of copper oxide film is purple, so industrial pure copper is often called copper or electrolytic copper. Fire smelting can obtain 99-99.9% pure copper, electrolysis can make the purity of copper to 99.95-99.99%. It has a density of 8-9g/cm3 and a melting point of 1083°C. Pure copper conductivity is very good, a large number of used in the manufacture of wire, cable, brush and so on; Good thermal conductivity, commonly used to manufacture magnetic instruments, instruments, such as compasses, aviation instruments, etc. Excellent plasticity, easy to hot press and cold pressure processing, can be made into tubes, rods, wires, strips, belts, plates, foils and other copper materials. Pure copper products have two kinds of smelting products and processed products. Product specifications are complete, the price is favorable, the packaging is intact, the copper is pure, the straightness is good, the inventory is large, can provide material certification and SGS report.

character:Good electrical conductivity. Corrosion resistance and processability, can be welded and fiber welding. Contains less impurities that reduce electrical conductivity, and a trace amount of oxygen is conductive to electricity. Thermal conductivity and processing properties have little impact, but it is easy to cause "hydrogen disease", and it is not suitable for processing (annealing) in a reducing atmosphere at high temperatures (such as >370°). Welding, etc.) and use

Copper parameter

chemical composition

mechanical properties

Our advantage

Product Inventory

Jiangsu Jinruiheng uses standard export transportation packaging, according to the size of the stainless steel plate binding steel belt. According to our shipping experience, a 20-foot container can hold 22 tons of stainless steel, and a 40-foot container can hold 25 tons of stainless steel. For larger orders, we ship by bulk carrier, which is cheaper. Packaging can also be customized according to customer needs.

Packing and Shipping:

DELIVERY SERVICE COMMITMENT:

The goods shall be delivered in strict accordance with the contract, and the consignee shall be notified within 48 hours after thegoods are delvered: Loading shall be carried out in strict accordance with the requlations. without overloading, bias and weiahtgathering
